SMT
PCBasm headquarters is located in Shenzhen, with branches established in Dongguan and Huizhou. Our nationwide chain of operations has locations convenient for many of our customers. There are 60+ SMT production lines, equipped with new Fuji NXTIII, AIMEX, XPF full-automatic solder paste printing machines, 15-temperature zone lead-free nitrogen reflux furnaces, wave soldering and other high-end equipment, AOI, 3D SPI, 3D X-RAY, intelligent first article testers, full-automatic plate splitters, crimping machines, BGA rework stations, and three-proofing paint. Our focus is on high-quality R&D of proofing, small and medium-sized SMT batch processing, assembly and other services.
Shen Zhen
Shang Hai
Cheng Du
Chang Sha
Tian Jin
Patch Advantages
High-Speed Delivery with Our National Chain of Factories
Delivery (within China) as fast as 8 hours
New FUJI Chip Mounter and Other High-End Equipment
50+ SMT Production Lines
Minimum Mounting:03015/01005/0201
Provide Full BOM Component Sourcing
Production Equipment
PCBasm SMT factories maintain constant temperature and humidity, with central air conditioning, air shower rooms, and anti-static treatment facilities. They are also equipped with new Fuji XPF, NXT3, automatic solder paste printing machines, 12-temperature zone nitrogen reflux furnaces, wave soldering machines, AOI/SPI/XRAY/intelligent first article testers, etc.

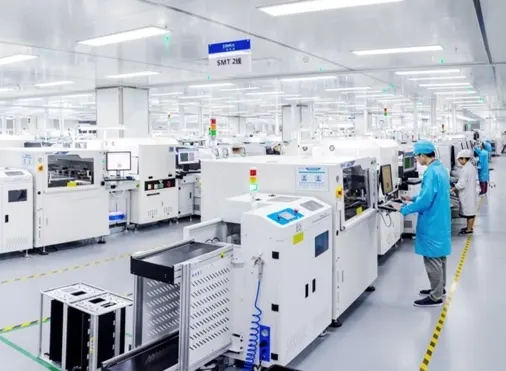

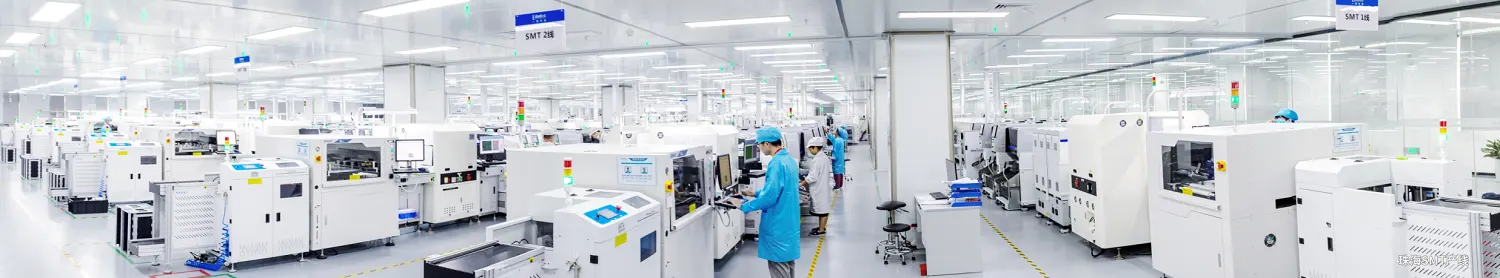

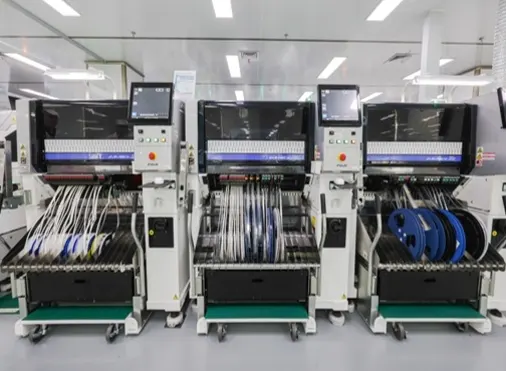

SMT production line

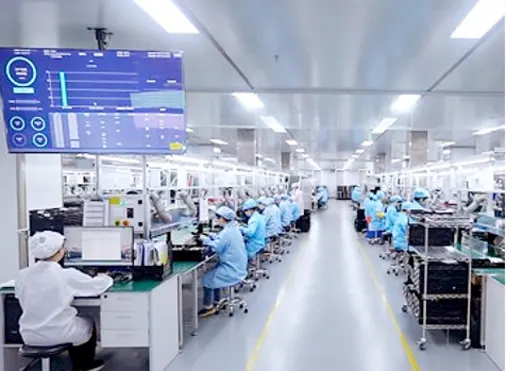

Assembly production line

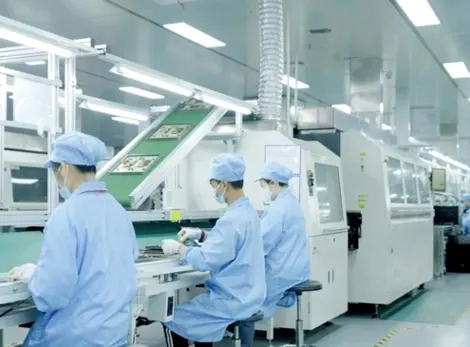

DIP production line

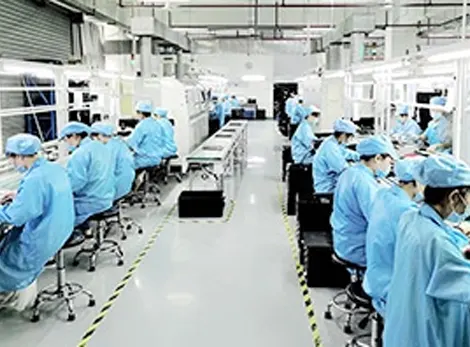

Post welding production line
FUJI AIMEX III
FUJI NXT III

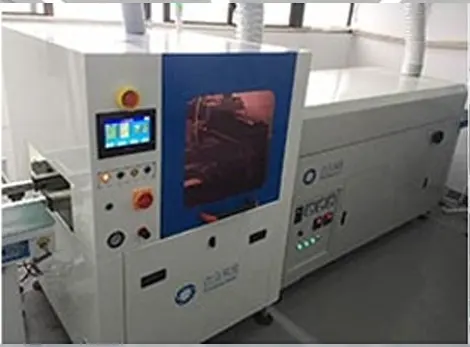

Three-proof paint automatic spraying production line

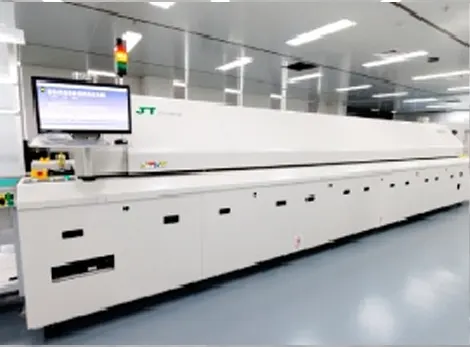

12 temperature zone lead-free nitrogen reflux furnace

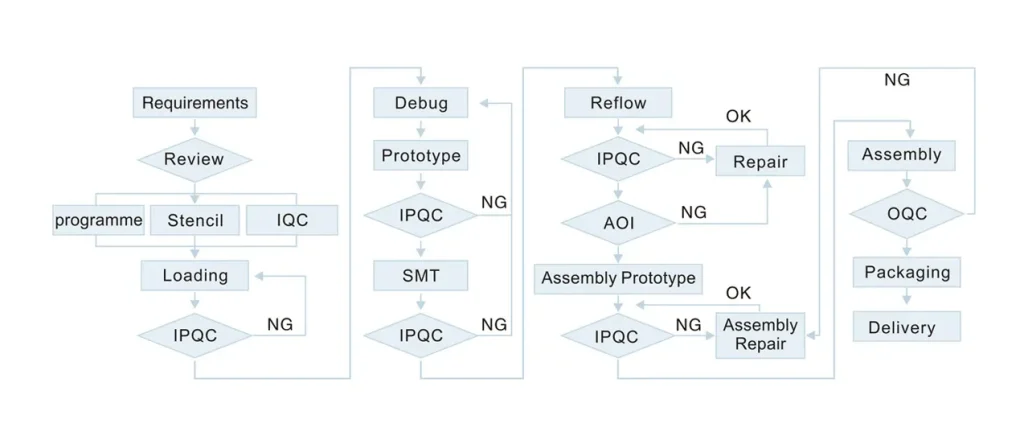

SMT Chip Processing Process
Product Display
PCBasm SMT factories have an accumulated 10,000 varieties of board production experience, with products spanning industries such as computer electronics, communications equipment, medical devices, automobile equipment, industrial control systems,and more.
Server motherboard
- ·Number of points: 10969
- ·Number of component types: 214
- ·PCB size: 468.5 * 172mm
- ·Double-sided reflow + wave soldering
- ·Minimum package size: 0402
- ·Minimum pin space: 0.4mm
Communication terminal equipment motherboard
- ·Number of points: 1,978
- ·Number of component types: 213
- ·PCB size: 282*201mm
- ·Double-sided reflow + selective wave soldering
- ·Minimum package size: 0402
- ·Minimum device pin spacing: 0.5mm
Signal processing board
- ·Number of points: 2,867
- ·Number of component types: 143
- ·PCB size: 233*163mm
- ·Double-sided reflow soldering + crimping
- ·Minimum package size: 0402
- ·Minimum pin space: 0.5mm
Industrial control motherboard
- ·Number of points: 1,978
- ·Number of component types: 213
- ·PCB size: 282*201mm
- ·Double-sided wave soldering
- ·Minimum package size: 0402
- ·Minimum pin space: 0.5mm
Handheld device motherboard
- ·Number of points: 738
- ·Number of component types: 182
- ·PCB size: 162*163mm
- ·Double-sided reflow soldering
- ·Minimum package size: 0201
- ·Minimum pin space: 0.5mm
